Product Overview:
Zinc Alloy
Max Doo rWeight:80KG
Opening Angle:180°
3D Adjustabe:Vertical±3mm
Horizontal±2mm,Depth±1mm
Applicable to the left/right hand door

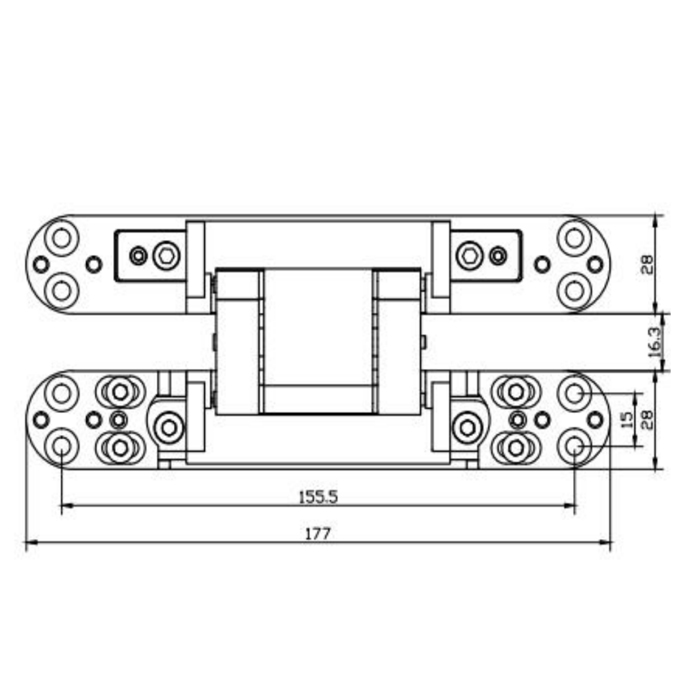

Technical Data:
Length(door/frame):177/177mm
Width(door/frame):28/28mm
Cutter Diameter:12mm
Opening Angel:≤180°
