Product Overview:
Stainless Steel 304
Max Door Weight:200KG
Opening Angle:170°
3D Adjustabe:Vertical±3mm
Horizontal±3mm,Depth±2mm
Applicable to the left/right hand door
Min Door Thickness:80mm

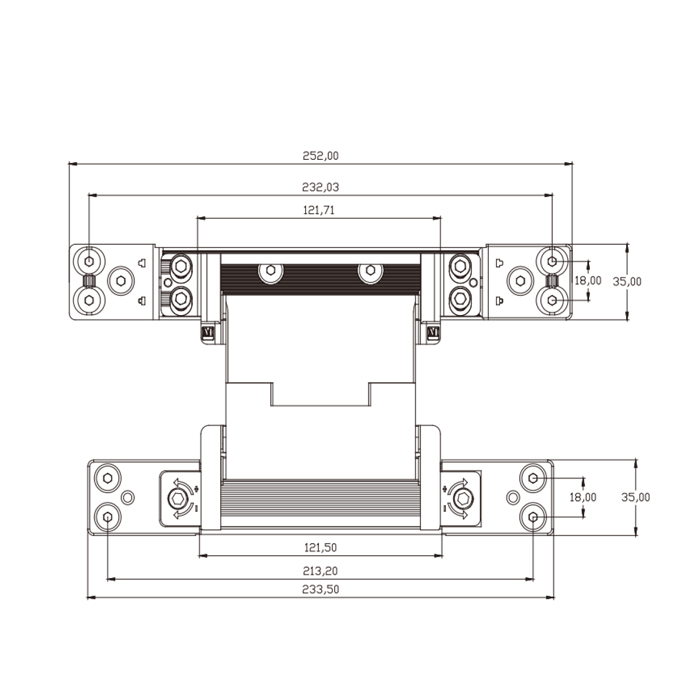

Technical Data:
Length(door/frame): 233.5/252mm
Width(door/frame): 35/35mm
OpeningAngel:≤170°
