Product Overview:
Stainless Steel 304
MaxDoorWeight:200KG
OpeningAngle:180°
3DAdjustabe:Vertical±3mm
Horizontal±2mm,Depth±2mm
MinDoorThickness:50mm

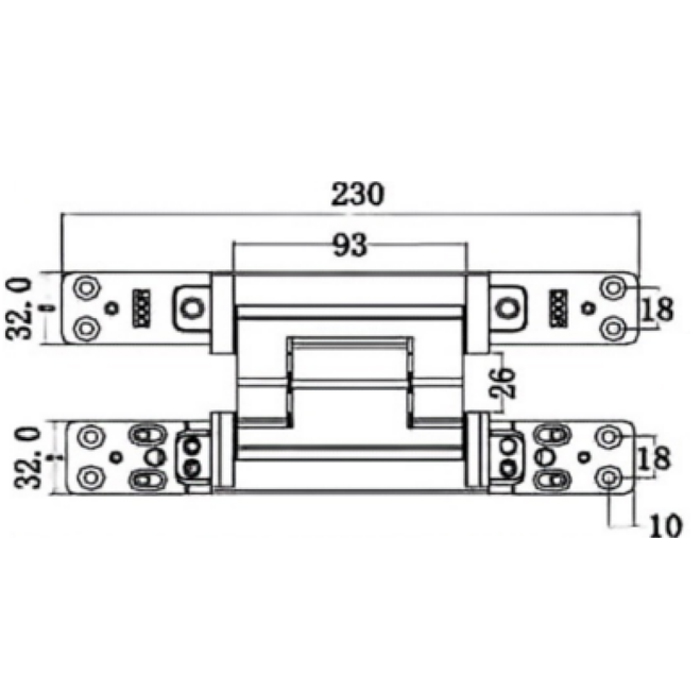

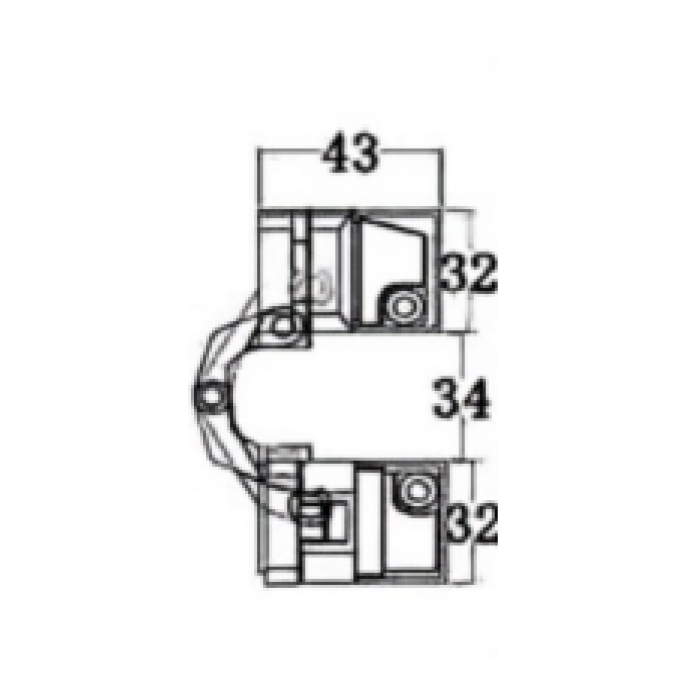

Technical Data:
Length(door/frame): 230/230mm
Width(door/frame): 32/32mm
Cutter Diameter:12mm
OpeningAngel:≤180°
