Product Overview:
Stainless Steel 304
MaxDoorWeight:200KG
OpeningAngle:170°
2D Adjustabe:Vertical±3mm
Horizontal±3mm,Depth±3mm
Applicable to the left/right hand door
Min Door Thickness:80mm

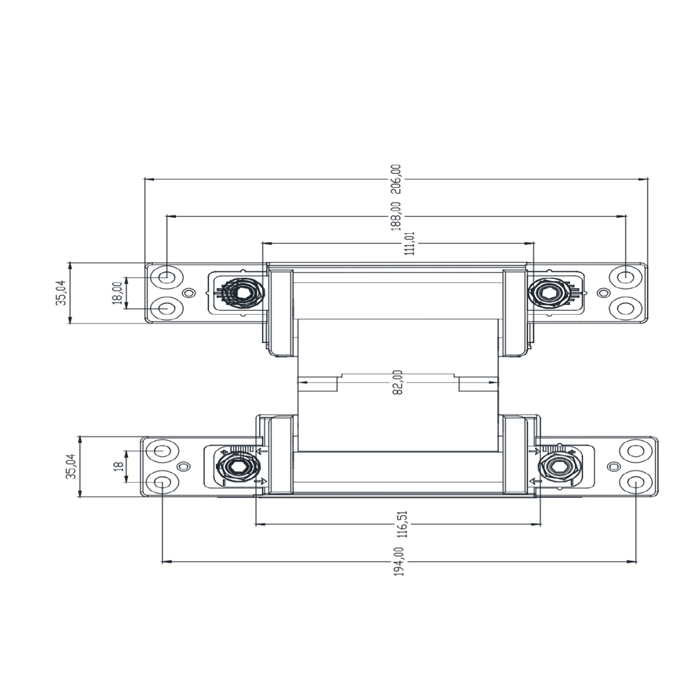

Technical Data:
Length(door/frame): 206/206mm
Width(door/frame): 35/35mm
OpeningAngel:≤170°
